AI Browser

A real browser whose only operator is your agent.
It reads pages as a semantic tree instead of screenshots, acts through trusted browser input — and because it is a normal, visible Electron window, a human can reach for the mouse at any time.

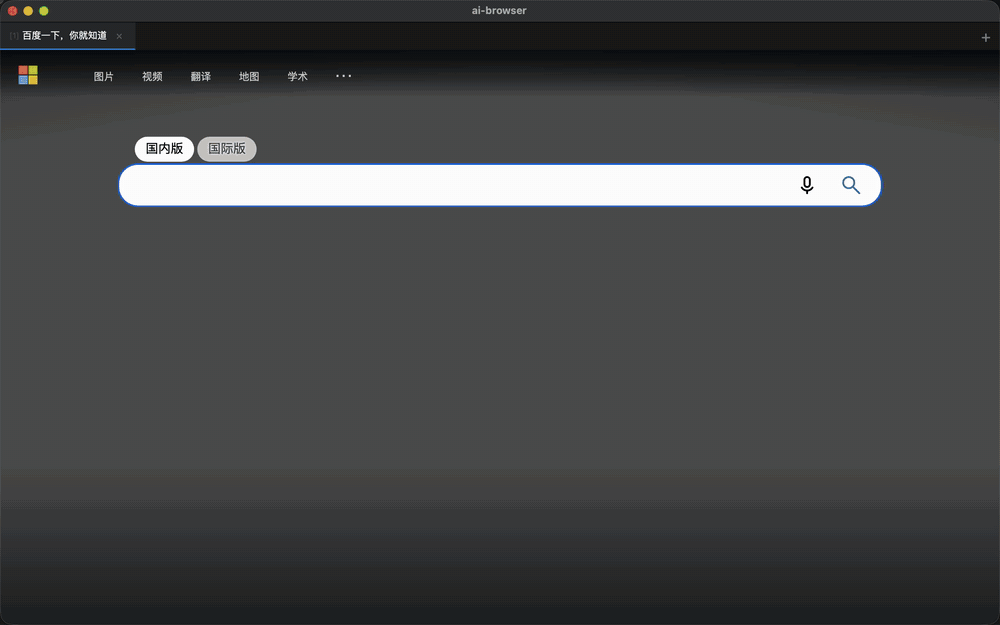

One agent, no coordinates: open Bing → type through trusted key events (live suggestions) → scroll the results → open page 2 → back to page 1 → open the project site in a new tab → keep scrolling there. Every target was found in the semantic tree by role/label.

Reproduce: npm start then node examples/demo.mjs

What it is. An Electron app that exposes its tabs over two equivalent interfaces — an MCP server (17 browse_* tools) and a raw WebSocket JSON-RPC API (ws://localhost:9223, methods ui.*). Your agent navigates, reads a structured semantic tree (role / label / value / states / actions), and clicks or types by data-ai-id. There is no screenshot step and no OCR: src/ contains no capture call at all.

What it is not. It is not headless. The window really opens, really renders, and stays interactive — see Letting a human step in. Nor does it "co-drive" with you: the hand-off is a conversation between the agent and the user, not a browser API.

Security note. The WebSocket server has no authentication — it listens on localhost and trusts whoever connects. Do not expose port 9223 beyond loopback, and avoid untrusted networks.

---

Install

Requires Node ≥ 18 and a desktop session (this is a GUI app).

Option A — npx (recommended for MCP users)

The package is published as @glittering0717/ai-browser; no clone needed:

npx -y @glittering0717/ai-browser --help

To open the visible browser window directly:

npx -y @glittering0717/ai-browser start

The first launch prepares the Electron engine (~100 MB, downloaded once). npm ≥ 11 blocks dependency install scripts by default — the launcher detects that and runs Electron's own downloader itself, so nothing extra is needed. If the download from GitHub releases is slow or blocked (common on mainland-China networks), point it at a mirror:

ELECTRON_MIRROR=https://npmmirror.com/mirrors/electron/ npx -y @glittering0717/ai-browser start

Option B — from source

git clone https://github.com/Glittering/ai-browser.git
cd ai-browser
npm install

If the Electron binary download is slow or fails outright, use the mirror:

ELECTRON_MIRROR=https://npmmirror.com/mirrors/electron/ npm install

Or make it sticky by creating a .npmrc in the project root:

electron_mirror=https://npmmirror.com/mirrors/electron/

Confirm the binary actually landed before blaming anything else — a missing binary still leaves you with an "install that succeeded":

ls node_modules/electron/dist

To check the install end to end:

npm start

A 1280×800 window opens and the terminal prints AI Browser WS server listening on ws://localhost:9223. (The first tab opens on the default start page; ignore it and navigate away.)

---

Connect your agent

Add this to your MCP client's config file — Claude Desktop's config, ~/.cursor/mcp.json, or a project-level .mcp.json:

{
  "mcpServers": {
    "ai-browser": {
      "command": "npx",
      "args": ["-y", "@glittering0717/ai-browser", "mcp"]
    }
  }
}

A ready-made copy sits in examples/mcp-config.json. From-source users can instead point command: "node" at /absolute/path/to/ai-browser/src/main/mcp_server.js.

You do not need to start the browser yourself. On the first browse_* call the MCP server probes port 9223; if nothing is listening it spawns Electron detached and waits up to 30 seconds for the WebSocket server (the very first call may additionally spend time preparing the engine). If you would rather keep one long-lived window shared by every client, run npx -y @glittering0717/ai-browser start (or npm start from source) in a terminal — a second launch just focuses the existing window.

examples/AGENT_INSTRUCTIONS.md has a copy-paste prompt you can drop into a CLAUDE.md, Cursor Rule, or any system prompt; it teaches the tool loop, the token-saving params, and when to ask a human. Agents installing this themselves (Cline, etc.) can read the short machine-oriented llms-install.md instead of this README.

---

The MCP tools

Source of truth: src/main/mcp_tools.js. There are 17 — a deliberately small surface, since every tool schema is injected into your agent's context on every turn.

Tool	One line
browse_navigate	Load a URL in the active (or given) tab.
browse_get_tree	Read the page as a semantic tree + page context (modals, messages, stats).
browse_act	click / type (append at caret) / setContent (replace all) / clear / focus / hover / scroll_to / upload / get_value (read-only) / drag / press / wheel on a data-ai-id.
browse_diff	snapshot a baseline, then diff to get added / removed / changed paths with before/after values. This is how you prove an action did anything.
browse_capabilities	Probe what a page affords and which route to take on it (see below).
browse_repaint	Force the compositor to redraw the tab when the window shows a stale page; returns repaint_count.
browse_downloads	List a tab's downloads with their on-disk paths. Downloads are asynchronous — poll this after clicking an export button.
browse_canvas	Read <canvas> through captured draw calls: list / read / configure / capture. Experimental — see the canvas section below.
browse_evaluate	Run a JS expression in page context (5000-char cap, Node identifiers rejected).
browse_scroll	Scroll the page, or scroll an element into view.
browse_wait	Poll until button_enabled / modal_appeared / text_contains / url_contains.
browse_list_tabs	List open tabs (id, url, title, active).
browse_new_tab	Open a new tab, optionally at a URL.
browse_close_tab	Close a tab by id.
browse_set_active_tab	Switch which tab subsequent calls act on.
browse_network	Chrome-DevTools-style network inspection: list (filter by method / URL / status / type), get (request + response headers and bodies), clear, configure.
browse_quit	Shut the whole browser down and release the process.

Prove it happened: browse_diff

A tool reporting success is not evidence that anything changed — the browser will happily tell you a click landed on an element that ignored it, a drag completed when the app snapped the node somewhere else entirely, or a keystroke went into a field that then cleared itself. Every write should be wrapped in a snapshot/diff pair:

const base = await browse_diff({ operation: "snapshot", js: "app.graph.serialize()" });
await browse_act({ action: "click", target: "e:button-25" });
const d = await browse_diff({ operation: "diff", snapshot: base.snapshot });
// d.verdict === "changed"
// d.changed_paths → [{ path: "nodes[7].widgets.steps", from: 20, to: 21, reason: "value" }]

• verdict is an explicit "changed" / "unchanged", so "nothing happened" is never inferred from an empty array you might have built wrong.
• Every entry carries a path plus both values, so you can check why it changed.
• Arrays are compared element-wise by index, not as sets: a moved node reads as changed entries, never as "one removed + one added" (which would look like two events instead of one reorder).
• Float noise is tolerated (201354.48743718592 vs ...1859 is not a change), but a real 22-unit coordinate shift is.
• Omit js for a site-agnostic DOM snapshot — role / label / value / disabled / size per element plus the page's visible text. No per-site JS required, and plain <div> status text changes are caught.
• Omit js and it also fingerprints the app's own data model when the page hangs one off window. A canvas-rendered app's DOM is a still photograph — dragging a node or editing a widget repaints <canvas> and moves nothing the element walk can see, so a DOM-only diff answers unchanged to a write that demonstrably happened. ComfyUI's documented write path (node.widgets[].value) moved the DOM by exactly zero bytes. With the fingerprint, that same write shows up as model.fp (and model.count when the node count moved). It is read-only (loadGraphData is a loader and is never called), it picks whichever candidate can actually be read back rather than whichever looks most promising, and a library namespace — which scores well on names and has no model to hand back — is skipped.
• rearm: true moves the baseline forward for the next diff, so you can loop "assert nothing changed" across many steps; forget: true drops it.
• A throwing expression, a missing id, or a cross-tab comparison all return an explicit error. They never degrade into an empty snapshot, which would make every subsequent diff report "unchanged" — the one failure mode that turns all verification into false green.

Which route on this page? browse_capabilities

Before improvising on an unfamiliar site, ask. One call reports the semantic-tree size and its role/action histogram, canvas count, same-origin iframes and their internal size, objects the app hangs off window (auto-detected by shape: has .graph / ._nodes / getState / serialize), the JSON endpoints it has already called, and a recommended route with the evidence for it:

• L1_structured_data — the app exposes its own model; read and write the whole graph as JSON.
• L2_semantic_tree — enough elements to find targets by role/label and drive them by data-ai-id.
• L3_pointer_gestures — only for what has no structured path (drag a node, draw a connection, wheel pan/zoom). Always follow with browse_diff.

It also flags traps explicitly: "the body is in a same-origin iframe" or "there are 7 canvases but only 17 semantic elements — stop trying to hit canvas-drawn items with coordinates and go find the data model instead".

Notes that save round-trips:

• browse_get_tree accepts subset: "interactive" to drop layout-only branches, mode: "diff" to return only nodes that appeared/disappeared since the last read, and ax: true to read through the accessibility layer (links then carry url).
• type appends; setContent replaces. They used to be identical (both replaced the whole content), which made incremental editing impossible — insert a Weibo-style topic tag and the next type wiped it. Now type writes at the caret (params.at: end (default) / start / cursor), so "insert a topic, then keep writing the body" works. To refill a field, use setContent (or clear first).
• browse_act also takes action: "get_value" — a read-only way to fetch an element's full text, which matters because browse_get_tree truncates long values at 200 characters (see below).
• Pointer gestures are first-class: drag, press and wheel. Canvas / board / sortable UIs are built on them, and no amount of evaluate can substitute — synthetic PointerEvents do not move a framework that uses Pointer Capture (measured on a React Flow canvas: the node's position changed by exactly 0,0), so these go through CDP trusted input.
  • drag: dx/dy, to_x/to_y, or to_target (drop onto another element). from_anchor / to_anchor (left/right/top/bottom/center) grab a side — a side prefers that element's connection handle, but only if the handle is actually hit-testable (see the note below). from_x/from_y start from a bare point (panning empty canvas), in which case no target is needed.
  • press: key (Delete, Escape, ArrowRight, Enter, … or a combo like "Meta+a"), or keys for a sequence. Deleting a node, undo, deselection — all keyboard-only.
  • wheel: delta_x / delta_y plus hold: ["Control"] for canvas zoom. browse_scroll cannot do this — it calls window.scrollBy, which an infinite canvas ignores entirely.
  • The drag result reports drag_from / drag_to and which element actually sits at each point (from_at_id), plus warning + start_hit_target: false when the press landed on a different element — visual overlap otherwise looks exactly like "drag does nothing".
• actions is inferred from behaviour, not from role. An element whose computed cursor is a drag cursor, or that has draggable="true" / cursor: pointer / an onclick, now advertises drag / click in the tree even when its role is group. Without this, a canvas full of role: group nodes reported actions: [] and the agent could not tell they were interactive at all.

---

• browse_network captures requests from the moment a tab opens, including POST request bodies — no subscription needed. Request headers are redacted by default (authorization / cookie → [REDACTED]); pass include_sensitive_headers: true to see them.
• Most tools take an optional tab for multi-tab work; without it they target the active tab.

---

Letting a human step in

It does not steal your focus

The agent works fine while the window is in the background. CDP trusted input (Input.dispatchKeyEvent / Input.dispatchMouseEvent) does not need the window to be frontmost, and the app already runs with disable-backgrounding-occluded-windows, disable-renderer-backgrounding and disable-background-timer-throttling, so a background window is neither throttled nor losing events.

That was already true for act / get_tree / evaluate / peek / scroll — but two paths used to drag the window to the front on every call: new_tab and set_active_tab (they called webContents.focus(), which activates the whole window). On top of that the window was shown with show() at boot even when the agent launched it. Both are fixed:

• new_tab / set_active_tab no longer take window focus. The page still thinks it is focused — Emulation.setFocusEmulationEnabled keeps document.hasFocus() and focus-dependent lazy-loading behaving normally — while the keyboard focus stays wherever you left it.
• When the agent launches the browser (over MCP), the window appears via showInactive(): visible, but not stealing focus. When you run npm start, it comes up in front as usual.

So the window stays visible — that is the whole point — but it is not dragged to the front while the agent drives. You can keep working.

AI_BROWSER_FOCUS=always npm start   # pre-1.2 behaviour: show + moveTop + focus on every action
AI_BROWSER_FOCUS=never npm start    # never change focus (the window is still shown)

Default is auto: keep the window visible (restore it if it was minimised or hidden), but never steal focus. Whatever the value, the window is always displayed — that is a product invariant.

npm run focus asserts all of this from the outside (macOS lsappinfo, no accessibility permission needed) and includes a deliberate control group configured to steal focus — so the suite would go red if the measurement ever stopped working, instead of passing vacuously.

It also proves the stronger claim — that the window does not need to be in the foreground at all. With another app holding the foreground, it runs a representative slice of the API and checks the real result of each one: typing lands, a click fires exactly once, get_tree returns a tree, canvas getImageData returns real pixels, network_list sees the request, navigate completes — and after sitting in the background for 10 seconds it still does all of the above without ever coming forward.

Note on document.hasFocus(): it returns true even when the window is in the background, because Emulation.setFocusEmulationEnabled is deliberately on — that is what keeps focus-dependent lazy-loading and animations from stalling. So it is not a valid way to detect "am I in the foreground"; the test uses the external observer instead.

---

This is the part most easily misunderstood, so plainly: the agent drives the browser, and the human can always take over the window.

Because it is a real Electron window, a person can click, type, scroll, and log in exactly as they would in Chrome — with the mouse and keyboard, at any moment, with no permission to request. That covers the things an agent genuinely cannot do:

• Login / SSO and anything behind a password the agent shouldn't have
• QR-code scans (app-to-web authorization)
• Slider and image CAPTCHAs, SMS or email codes
• Payment confirmation, risk-control interstitials, OTP screens
• Anything where continuing would mean fabricating credentials

How the hand-off works: there isn't one — in the browser. Nothing coordinates it on AI Browser's side, and nothing needs to. It is a conversation between the agent and its user:

1. The agent hits something it cannot do.
2. It says so in chat, plainly: "Please scan the QR code in the browser window, then reply 'done'."
3. It stops and waits for the reply — no retry loops on clicks that cannot work.
4. After "done" it re-reads with browse_get_tree to confirm the new state, then continues.

See examples/with-human.mjs for the scripted equivalent: it prints a prompt and waits for Enter over readline. The browser has no idea any of that happened.

Two practical consequences for the agent:

• Never call browse_quit while a human is working in the window. It tears down the window and exits the process — anything half-solved is lost. Quit when the task is finished, not before.
• Login state persists. Tabs live in the persist:ai-browser session partition, so cookies and sessions survive a restart; usually a human only has to step in once per site per machine.

---

Raw WebSocket API

MCP is a thin stdio adapter. Anything MCP can do is reachable directly over JSON-RPC 2.0 at ws://localhost:9223 from any language. Source of truth: the method switch in src/main/ws_server.js.

Method	Purpose	Maps to
ui.get_tree	Semantic tree (+ context). Params: focusedOnly, ax, subset, mode, tab	browse_get_tree
ui.act	params.action + params.target; per-action args nested under params.params	browse_act
ui.navigate	Load a URL (params.url, optional tab). Returns {ok, error?} — {ok:false} always carries a reason.	browse_navigate
ui.snapshot / ui.diff	Capture a baseline (params.js, optional label) and diff against it (params.snapshot, rearm, forget)	browse_diff
ui.capabilities	Probe the page: tree histogram, canvas, iframes, app globals, endpoints, recommended route	browse_capabilities
ui.repaint	Force the compositor to redraw a tab; returns repaint_count so a repaint is provable	browse_repaint
ui.evaluate	Run JS in page context, same guard as MCP	browse_evaluate
ui.scroll	Scroll page or element (direction, amount, target). Document scrolling only — for canvas apps use ui.act{action:'wheel'}.	browse_scroll
ui.wait	Poll until a condition or timeout	browse_wait
ui.new_tab / ui.close_tab / ui.list_tabs / ui.set_active_tab	Tab management	browse_*_tab
ui.subscribe / ui.unsubscribe	Event subscription; params.events, "*" for all	— (WS only — see below)
ui.downloads	This tab's downloads with on-disk paths (state, received_bytes, dir)	browse_downloads
ui.get_focused	The focused element subtree	—
ui.peek	Hover a folded/hover-only affordance and return the diff, without committing	—
ui.network_body	Response body by URL substring (url_pattern)	— (superseded by browse_network)
ui.quit	Graceful shutdown	browse_quit

Note two differences from the MCP spelling, both visible in the switch above: it is focusedOnly (camelCase), not focused_only; and ui.act nests its per-action arguments under params.params. ui.subscribe / ui.unsubscribe are also valid as notifications with no id.

ui.subscribe is deliberately not exposed as an MCP tool: MCP's stdio path drops server→client notifications, so an MCP caller would subscribe and then never receive a single event. Real-time events are a raw-WebSocket capability only. For anything pull-based, use browse_network instead.

import WebSocket from 'ws';

const ws = new WebSocket('ws://localhost:9223');
let id = 0;
const call = (method, params) => new Promise((resolve, reject) => {
  const myId = ++id;
  const onMsg = (raw) => {
    const m = JSON.parse(raw.toString());
    if (m.id === myId) { ws.off('message', onMsg); m.error ? reject(new Error(m.error.message)) : resolve(m.result); }
  };
  ws.on('message', onMsg);
  ws.send(JSON.stringify({ jsonrpc: '2.0', id: myId, method, params }));
});

ws.on('open', async () => {
  await call('ui.navigate', { url: 'https://example.com' });
  const { tree } = await call('ui.get_tree', { subset: 'interactive' });
  console.log(tree.role, tree.children?.length);
  ws.close();
});

Error codes follow JSON-RPC: -32700 parse error, -32601 unknown method, -32602 invalid params (the ui.evaluate guard returns this), -32603 internal error.

---

How it works

   agent ── MCP stdio (17 browse_*) ──┐
   agent ── WS JSON-RPC :9223 (ui.*) ─┤
                                      ▼
 ┌──────────────────────────────────────────────────┐
 │ Electron main                                    │
 │   index.js        window · tab strip · watchdog  │
 │   ws_server.js    JSON-RPC routing, event stream │
 │   page_manager.js tabs · id-matched IPC · CDP    │
 └───────────────┬──────────────────────────────────┘
                 │ IPC (request-id matched)
 ┌───────────────▼──────────────────────────────────┐
 │ preload (contextIsolation:true, nodeIntegration:false)
 │   bridge.cjs · extractor.cjs · actions.cjs ·     │
 │   watcher.cjs  (captcha / message / state scan)  │
 └───────────────┬──────────────────────────────────┘
                 ▼
              live DOM → semantic tree

Reading. Each node in the returned tree carries a data-ai-id — the element's own DOM id when it has one, otherwise a generated e:tag-N. Ids are stable across reads: an element that already carries one keeps it, and generated ids come from a monotonic counter, so inserting an element above others does not renumber them. (It used to: a stale id then silently resolved to a different element, and the act reported success while hitting the wrong thing.) They reset on navigation. Alongside the id come role, label, value, states, and actions, plus a context block — open modals, transient messages, required-field hints, coarse stats. Two read paths exist: the default preload extractor, and the accessibility layer behind ax: true (which additionally gives links their url).

The first read of a page annotates elements with data-ai-id; that is the one write a read performs, and it is what makes later acts resolvable. Repeat reads write nothing. An attribute is only set when its value actually changes, because real Chromium delivers a MutationObserver record even when you set an attribute to the value it already holds — measured at 4001 records per read on a 4000-element page before this guard existed. A read that spams the page's own observers is a read that perturbs the thing it is measuring.

Writing. Actions are trusted browser input, not synthesized JS. The main process drives the page over the Chrome DevTools Protocol — Input.dispatchMouseEvent for clicks, and per-character Input.dispatchKeyEvent (rawKeyDown → char → keyUp) for typing — then validates that the click actually landed via elementFromPoint. Because the events arrive as real keyboard and mouse input, Draft.js, ProseMirror, CKEditor, Quill, and plain <textarea> all work through the same path without per-framework branches.

Where it is thin. extractor.cjs is a heuristic over the DOM, not a clean-room specification: it handles ordinary pages well and will mislabel exotic ones. The window runs with hardware acceleration off plus three Chromium switches (--disable-backgrounding-occluded-windows, --disable-renderer-backgrounding, --disable-background-timer-throttling) so that an IDE window on top of the browser doesn't cause injected input to be silently dropped.

---

Examples

Runnable scripts live in examples/ and connect straight to ws://localhost:9223:

File	What it shows
mcp-config.json	Minimal MCP client config; replace the placeholder path.
AGENT_INSTRUCTIONS.md	Copy-paste instructions for your agent, incl. the human hand-off protocol.
raw-ws.mjs	Smallest possible raw WebSocket client.
read-page.mjs	Load one page, print its interactive elements.
with-human.mjs	Full flow for when a human has to step in.

node examples/read-page.mjs

---

Troubleshooting

The page updated but the window still shows the old one. This used to require clicking tabs back and forth, because the only thing that forced the compositor to redraw a BrowserView was setActiveTab doing removeBrowserView + addBrowserView + setBounds — navigation never did it. Now every navigation signal triggers it: did-navigate, did-navigate-in-page (SPA route changes fire no load event at all), did-frame-finish-load (a canvas editor inside an iframe boots long after the top document finished), plus window show / restore / focus — which matters here because this window is designed never to steal your focus, so it sits behind your editor for minutes at a time. If it still looks stale, ui.repaint forces it on demand and returns repaint_count so you can confirm a repaint actually happened.

An action reported success but nothing changed. Two causes worth knowing:

• Over raw WS, ui.act nests its per-action arguments under params.params — {action:"type", target:"<id>", params:{text:"…"}}. Flattening it to {text:"…"} passes an empty string, which used to hit the idempotent short-circuit and report success with nothing typed. It now returns an explicit error instead.
• Sometimes the action genuinely did nothing (an overlay ate the click, the app reverted the change). That is what browse_diff is for — wrap the write in a snapshot/diff pair rather than trusting the return value.

An action never returns at all. Every path that goes into the page is bounded by a deadline, so a page whose main thread is blocked (a heavy recompute, a huge JSON.parse, a third-party script in a loop) can never hang your tool call. Measured against a page that occupies its main thread for 120s:

Call	Behaviour
ui.get_tree / ui.get_focused	errors at 5s (getTree timeout)
ui.evaluate	errors at 10s (CDP 5s, then the preload fallback's 5s)
ui.act	returns at 15s with success:false, timed_out:true
ui.capabilities	returns normally (~15s)
ui.list_tabs / ui.network_list	instant — they never touch the page

ui.act's budget scales with the work requested, so a legitimate long operation is not killed: type /setContent budget text.length × interval_ms, drag budgets duration_ms + steps, press budgets repeat × interval_ms, clear gets 20s. Override with params.params.timeout_ms (1s floor, 300s cap) or globally with AI_BROWSER_ACTION_TIMEOUT_MS. A timeout explicitly warns that the action may have partially applied — pointer already down, half the characters typed — so re-read before retrying rather than firing the same write twice.

The app restarts itself. Electron's NetworkService can wedge as a whole: the port still listens, every navigation fails with ERR_FAILED, and curl works fine. A watchdog probes from the main process every 30s; after 5 consecutive failed sweeps it broadcasts network_wedged and relaunches (the MCP client reconnects on its own). With a 5s per-request deadline that puts a genuine wedge at roughly two minutes.

• Change what it probes: AI_BROWSER_WATCHDOG_URLS=https://www.baidu.com/,https://example.com/ (comma-separated). The default is example.com plus www.baidu.com, and that plurality is deliberate — the network counts as alive if any target answers, so one flaky or geo-blocked host can't trigger a reboot loop. Never set a single target that your network can't reach.
• Turn it off entirely: AI_BROWSER_WATCHDOG=0 (also accepts off / false / no).

Port 9223 is already busy. Another instance — often a stale one from an earlier session — owns the port, or something else does. Either quit that instance, or move AI Browser off it:

AI_BROWSER_PORT=9224 npm start

Keep the port consistent across every client; both the app and the MCP server read AI_BROWSER_PORT from src/shared/config.js.

Electron is missing or launch fails immediately. The ~100 MB engine never landed. With the npm package, just launch again — the launcher downloads it itself (set ELECTRON_MIRROR for a slow network, see Install). From source, check ls node_modules/electron/dist and re-run npm install with the mirror. Setting AI_BROWSER_PORT will not help here — this is a missing binary, not a port conflict.

Input is accepted but nothing happens. Usually the window is occluded. The three disable-*-backgrounding switches above exist to prevent it, but if you still see clicks that report success while nothing moves, bring the AI Browser window to the front and try again.

Login state keeps getting lost. Sessions persist under ~/.ai-browser. If you override it, note that separate AI_BROWSER_USER_DATA directories are separate session stores — "logged in" in one is not "logged in" in another:

AI_BROWSER_USER_DATA=~/.ai-browser-work npm start

---

Test & dev

npm test             # vitest — 411 tests across 27 files
npm run smoke        # Electron contract layer, offline fixture      — 31 checks
npm run capabilities # text fields, canvas, page source, network, DOM editing — 54 checks
npm run richtext     # rich-text editors, nested menus, forms, errors, tags, upload — 117 checks
npm run network      # request log, POST bodies, headers, pagination, redaction — 41 checks
npm run value        # value truncation contract + read-only get_value — 15 checks
npm run canvas       # canvas draw-call capture — 13 checks
npm run modeldiff    # canvas app data-model diff (the "unchanged" false green) — 12 checks
npm run audit        # every advertised action must exist; wait/downloads/permissions/quit — 35 checks
npm run focus        # no focus stealing + full capability while backgrounded — 32 checks
npm run interact     # trusted drag / key press / wheel (pointer gestures) — 31 checks
npm run view         # viewport repaint + snapshot/diff verification — 28 checks
npm run realsites    # navigate/read/act against a matrix of real sites

All e2e suites boot a genuine Electron against offline fixtures and exit non-zero on failure. Together they cover what jsdom structurally cannot: preload integrity, ui.evaluate under a strict CSP, CDP click hit-testing, multi-tab lifecycle, event fan-out, and the evaluate guard rails.

They all need the WS port free — stop a running npm start first, or point them elsewhere:

AI_BROWSER_PORT=9333 npm run smoke

They boot their own Electron in an isolated profile (/tmp/ai-browser-e2e-<port> by default), so they never touch your real ~/.ai-browser profile — the one holding your logged-in sessions. They also clean up their Electron on exit, including on Ctrl-C / timeout / crash: an orphaned process would otherwise hold the port and the single-instance lock, and you would find npm start refusing to launch with "another AI Browser instance is already running".

What each capability suite proved

npm run view — the suite for the two things that quietly produce false confidence.

Viewport. A BrowserView can be fully loaded and still show stale pixels, and the only thing that forced a repaint was switching tabs — which is exactly why "click the tabs a few times" used to fix it. It now fires on every navigation signal and on window show/restore/focus. The suite proves it from the cumulative repaint counter, not from a screenshot: a screenshot needs eyes, a counter falsifies. It also proves the debounce doesn't self-trigger (a repaint loop would flicker forever) and that repainting changes no page data.

Verification. ui.diff is only useful if it is right in both directions, so each assertion comes in pairs: a real change must be reported and an unchanged page must not be. The negative controls are the point — a diff that invented changes, or a snapshot that quietly became empty on error (making every later diff report "unchanged"), would turn all verification into false green. The suite also pins the failure mode where a mistyped parameter layer made type report success without typing anything.

npm run richtext — the deepest suite. Rich-text editors and formatting, two- and three-level nested menus, required vs optional fields (native required, aria-required, red asterisks), error and warning surfaces (field-level, form-level, toasts, modal dialogs), radio / checkbox / select / combobox, tag inputs and Weibo-style topic insertion, and image upload. Every action assertion is checked against the real DOM, not just the semantic tree.

Two things it changed in the product:

• A click on a button that dismisses itself used to fire twice (the hit-test ran after the dispatch, found the target gone, and fell back to a second click). Duplicate submissions, duplicate mentions. Clicks now hit-test before dispatching and no longer fall back.
• Field-level errors used to be invisible — they are carried by bare <span>s with no ARIA role and were pruned as layout. They now surface in context.errors / context.field_errors, scanned across the whole document rather than only inside dialog containers.
• Three reads used to depend on a container's class name. Red asterisks were scanned only inside containers whose class happened to contain modal/dialog/popup/…, so a plain-page form's required fields were invisible; modals[].fields[] entries carried no id, so an error read for one field could not be mapped back to it; and auxiliary text in bare <span>/<div> (character counters, format hints) was pruned from the semantic tree with no second path at all. All three now sit at the top level of context: required_hints is scanned across the whole document, fields[] entries are shaped identically in modals[] and forms[] (id included, verified against the real DOM), and form-adjacent bare-span text lands in hints — the semantic tree itself keeps its pruning, so the token cost is unchanged.

npm run capabilities — typing into every kind of text field (plain inputs, password, number, textarea, contenteditable, plus readonly / disabled / maxlength — including CJK input and 1000-character text), reading page source, capturing response bodies, and editing the page through ui.evaluate.

npm run network — that a POST can be captured with its full request body, that headers are redacted by default, and that bodies paginate instead of being silently truncated.

npm run modeldiff — the suite for the one place ui.diff used to lie. A canvas-rendered app's DOM is a still photograph: dragging a node or editing a widget repaints <canvas> and moves nothing the element walk can see, so the DOM-only default snapshot answered unchanged to a write that demonstrably happened — including ComfyUI's documented write path, node.widgets[].value, which moves the DOM by exactly zero bytes. The suite proves the model fingerprint on a self-built fixture (never someone's live project, where snapping and quantization make "move it back" untrue):

• adding a node → verdict: changed, and the diff paths are only model.count / model.fp — zero nodes.* and zero text*, which is how the test proves the credit belongs to the model rather than to the DOM happening to move;
• the ComfyUI case — changing one widget value with the node count unchanged → still changed, and specifically model.fp without model.count;
• both directions: an untouched page must stay unchanged, and a plain page with no app object must never acquire a model field (no false reds from machinery that invented a candidate);
• the model signal must not mask DOM changes — when both move, both are reported.

Two design points the suite pins, both learned the hard way:

• selection is by what can actually be read back, not by how promising the name looks. A library namespace scores well on names and has no model to hand back, so returning null is what disqualifies it;
• the rank comes from the strongest accessor the object has, while the read goes through serialize() when one exists (it returns JSON-safe data; the live collections are usually circular). Collapsing the two makes every candidate report serialize, they all tie, and a mere serializer can outrank the real model — that bug was caught by the tie-break test, not by review.

Canvas: read through draw calls, not pixels

The semantic tree reports a <canvas> as role: canvas and nothing more — no text, no pixels. browse_canvas fixes that without taking a screenshot: a recorder is injected into the page's main world and wraps the Canvas API, capturing the draw calls themselves.

The point is that a canvas is drawn by code, so the code already knows what it drew. fillText hands us the literal string — text inside a canvas needs no OCR:

// browse_canvas(operation: "read", canvas_id: "canvas:nav-…:frame-main:1")
{
  "kind": "2d", "readability": "semantic",
  "texts": [
    { "seq": 2, "method": "fillText", "text": "确认支付",
      "bounds_canvas": { "x": 20, "y": 40, "width": 120, "height": 30 },
      "style": { "font": "20px sans-serif", "fill_style": "#000000" } }
  ],
  "regions": [ { "seq": 3, "kind": "rect", "method": "fillRect", "bounds_canvas": {…} } ]
}

The recorder is a tee, never a takeover: it calls the native API first (Reflect.apply(original, …)) and only then records, inside its own try/catch. A recording failure can never change a return value, an exception, this, or draw order.

Two limits you should know:

• The hook installs after a page's first load, so anything drawn during that initial load is not recoverable. browse_canvas(operation: "configure", reload: true) reloads with the hook in place and gives you the complete history. (Root cause: awaited CDP commands hang on a freshly-created tab in Electron, so installation has to wait for did-finish-load.)
• WebGL is opaque. Vertices, textures and shaders are not reversible to business meaning, and text is usually a glyph atlas. Such canvases are marked opaque rather than guessed at. For that case only, operation: "capture" returns a PNG of the canvas region — off by default, explicitly invoked, and it costs your agent's vision tokens.

Disable entirely with AI_BROWSER_CANVAS_HOOK=0.

Boundaries worth knowing before you rely on them

• node.value is truncated at 200 characters. That is our limit, not CDP's. When it truncates the node carries value_truncated: true, value_full_length, and a ready-to-call value_fetch hint — use browse_act(action: "get_value"), which is read-only and paginates.
• Password fields expose no value at all — only value_sensitive: true. The semantic tree is fed wholesale into your agent's context, so it should not carry secrets.
• js_error is broadcast for every tab (each event carries tabId), so ordering and indices are not guaranteed. Filter by tabId; do not rely on "the first error is the one I care about".
• A "connection handle" is only used if a real pointer could hit it. Many sites render handles as pointer-events: none + opacity: 0 decorations (verified on the rhtv canvas: every handle is pe:none / op:0). Anchoring on such an element would press the node body instead — so the resolver self-checks with elementFromPoint and falls back to the element's border midpoint, reporting via: "edge". If you see via: "edge" where you expected a handle, that is the honest answer: drag-to-connect is not available at that spot, and the site must wire nodes some other way.
• ui.scroll is document scrolling. It does window.scrollBy, so it is a no-op on canvas-based editors, maps and charts. Use ui.act{action:'wheel'} there.

npm run realsites is table-driven from e2e/realsites/sites.cjs, currently 17 sites across 8 buckets (search, finance, media, dev, ecommerce, spa, editor, marketplace). The run prints two numbers, and deliberately never blends them into one:

• 行为正确率 / behaviour rate — did the browser behave as expected? Sites that require login or answer with an anti-bot wall count as passing when the wall is correctly detected, because that means the detection works.
• 内容成功率 / content rate — did we actually read the content? This counts only sites where the tree came back above the site's minNodes; a wall is not content.

Reporting a single "success %" would let a correctly-detected login wall inflate the content number. The run also prints the corpus size, runs-per-site, run count and timestamp, so any percentage in a report can be re-derived rather than taken on faith.

Layout:

src/main/      Electron main — ws_server · page_manager (tabs, CDP) · mcp_server · mcp_tools · axExtractor
src/preload/   bridge · extractor (semantic tree, data-ai-id) · actions · watcher
src/renderer/  tab bar UI
src/shared/    config (AI_BROWSER_* env) · guards (evaluate safety) · protocol · watchdog
e2e/           smoke_ws.cjs · realsites/
tests/         vitest unit suites
skills/        optional higher-level recipes built on the tools

src/shared/config.js is the single source for port, user-data dir, and UA overrides; guards.js is the single source for evaluate limits, enforced identically on both transports.

---

Compatibility

Dimension	Support
Agents	Any MCP stdio client; alternatively raw WS from any language
Node	≥ 18
OS	macOS and Linux — developed and tested on these. Windows: experimental and untested. It is plain Electron plus CDP, so it ought to build, but no one has run it; expect to debug npm install and the window layer yourself. Please report back either way.
Page frameworks	React / Vue / Angular / vanilla DOM — element locating is DOM-based, not framework-based
Editors	Rich editors driven through trusted input rather than per-framework code paths
Page types	Static and SPA; dynamic updates observable via the tree, dom_change / state_changed events

---

Contributing

Issues and PRs are welcome, especially reproduction cases where the semantic tree gets a page wrong — those are the most useful bug reports this project can get.

What we try to hold the line on:

• Keep the core generic. Site-specific knowledge belongs outside src/main and src/preload.
• IPC stays request-id matched, and CDP sessions stay reference-counted — tabs leak otherwise.
• No screenshots. If a change needs pixels to work, the design question is upstream of it.
• evaluate stays guarded (length cap, no Node identifiers), on both transports at once.
• Agent instructions change when behaviour changes. The MCP tool list, ws_server.js methods, and examples/AGENT_INSTRUCTIONS.md must agree; a doc that drifts from mcp_tools.js is a bug.

---

License

MIT © Glittering
